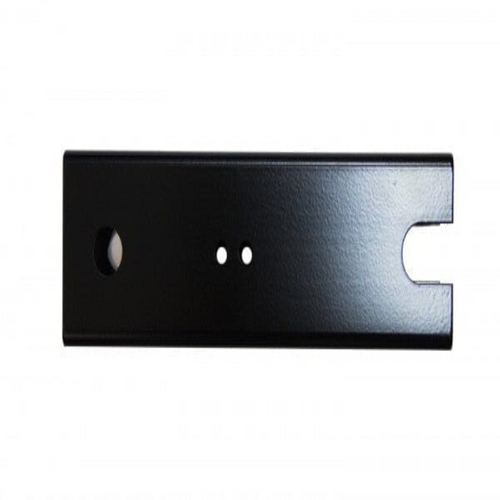

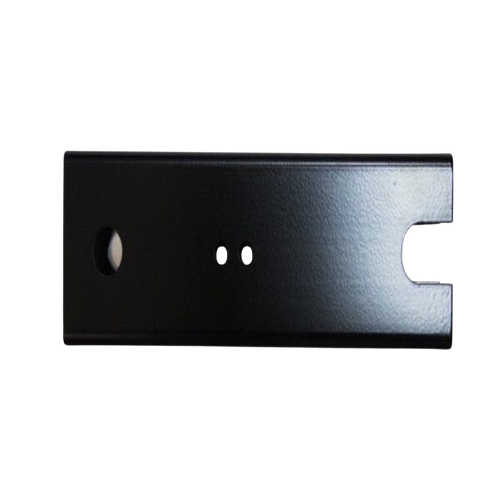

Platinum & Tungsten Smart-Heat Gas Series Ceiling Mount Pole

Compatibility: Platinum Smart-Heat Gas and Tungsten Smart-Heat Gas collections

Recommended heater height: Bottom of heater approximately 8′–9′ above the floor

Installation note: Poles must hang vertically; pitched-ceiling adjustment is only so the pole still drops straight down

Lengths / SKUs on this product:

• BH3030003 — 9.69" (246 mm) — for ~3.2 m / 10'6" ceiling
• BH3030004 — 13.62" (346 mm) — for ~3.3 m / 10'10" ceiling
• BH3030005 — 17.56" (446 mm) — for ~3.4 m / 11'2" ceiling
• BH3030006 — 25.43" (646 mm) — for ~3.6 m / 11'10" ceiling
• BH3030007 — 33.31" (846 mm) — for ~3.8 m / 12'6" ceiling
• BH3030008 — 41.18" (1046 mm) — for ~4 m / 13'1" ceiling

Sizing tip (from Bromic): add pole length to overall heater+bracket height (~16.6"), then subtract floor-to-mounting-point distance to confirm the underside height falls in the 8′–9′ range. Follow installation clearances.

Official product page: bromic.ca — Gas Mounting Poles

See Bromic Heating warranty documentation for coverage on accessories and spare parts. Controllers are listed at 1 year on the official warranty page where applicable.

Do not assume multi-year heater warranties apply to accessories. Confirm with Bromic or our team if needed.

bromic.ca/warranty · Warranty registration
